K&H.p87.#6 K&L.p26.#7 TOK.p14.r2.c2 BMM9.p13.r1.c3 25EMC.pdfp50.#11.1&2&3 JM.p271#2
WINIK WINIK WINIK WINIK WINIK/WINAK wi.<WINIK:ki>
K&L.p63.#3 IC.p16.pdfp20.#2.1&2
WINIK / WINAL WINAL / WINAAK
MHD.ZF1a.1&3 MHD.ZF1b.1&2&3 MHD.ZF1c 0521st 0521hh
WINIK WINIK/WINAL WINAK WINIK WINIK
MHD.ZF1a.2
WINIK
K&H.p55.#4.1 TOK.p28.r5.c1 BMM9.p18.r3.c2 25EMC.pdfp51.#1.2&3
WINIK WINIK /e WINIK WINIK / WINAL
K&L.p63.#4.1-11 IC.p16.pdfp20.#2.3&4 Montgomery = Coll-1
YAX HS2 Step 7 N2
WINIK / WINAL WINAL / WINAAK 6.<WINIK:ki>
K&L.p63.#4.12 = IC.p16.pdfp20.#2.6 IC.p16.pdfp20.#2.5
YAX Lintel 48 D1-D2 PAL PT B9-B10
WINIK / WINAL WINAL / WINAAK
TOK.p27.r2.c2
WINIK
· 25EMC seems to make a distinction of WINIK / WINAK when it means “man, person, human” and WINIK / WINAL when it means a period of 20 days = the Maya “month”.
· Note that winal is with a short-a.
o K&L (which does explicitly indicate length) has winal.
o The spelling winaal with long-a does exist: a Google search on “winaal” “Maya” gives under 200 hits, but this seems to be the spelling in some of the modern Mayan languages.
o In Classic Maya, it’s winal: a Google search on “winal” “Maya” gives more than 75,000 hits.
· Do not confuse this with the phonetically similar wi’naal = “hunger”, “famine”.

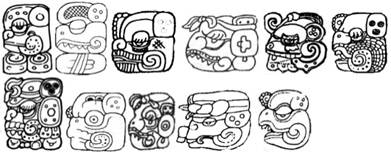

· Variants (5):
o A. Abstract: as in “man” / “person” / “human being“
§ This variant resembles a human face (but perhaps not iconographically derived from one?).
§ There is an element at the centre of the bottom which takes one of two forms:
o A YAX-outline.
o A triangle with left and right sides slightly curved slightly inwards, tip pointing upwards.
The K&L. examples suggest that these are interchangeable, without affecting the logogram and reading.
§ Bonn gives a sub-variant, 0521hh, which has actual eyes and a mouth.
o B. Head:
§ This is simply the animated form of the abstract variant – it has the abstract variant infixed in a generic head.
§ MHD.ZF1a.2 is the only example I know of – the printed pedagogical sources do not give this variant.
o C. Animal head - the head of an iguana / frog / turtle:
§ The curved line of a mouth, with a row of triangular teeth, pointing downwards.
§ A “reptilian” spiral curl to the right of the mouth, optionally with a spine or dotted spine.
§ An eye consisting of a circle divided in half by a horizontal line:
· Top half: a series of parallel vertical ticks along the floor.
· Bottom half: a semicircle in the middle of the ceiling.
§ Ear: optional (but common) – 3 non-touching dots in a triangular formation, triangle pointing down.
o D. Full figure:
§ Iguana / frog / turtle.
§ So far, I’ve only seen them in PAL PT and YAX Lintel 48.
o E. “SHIELD”. <K’UH+“turtle head?”>: This variant is given in TOK.p27.r2.c2 and is a very unusual / aberrant form.
